Model Overview

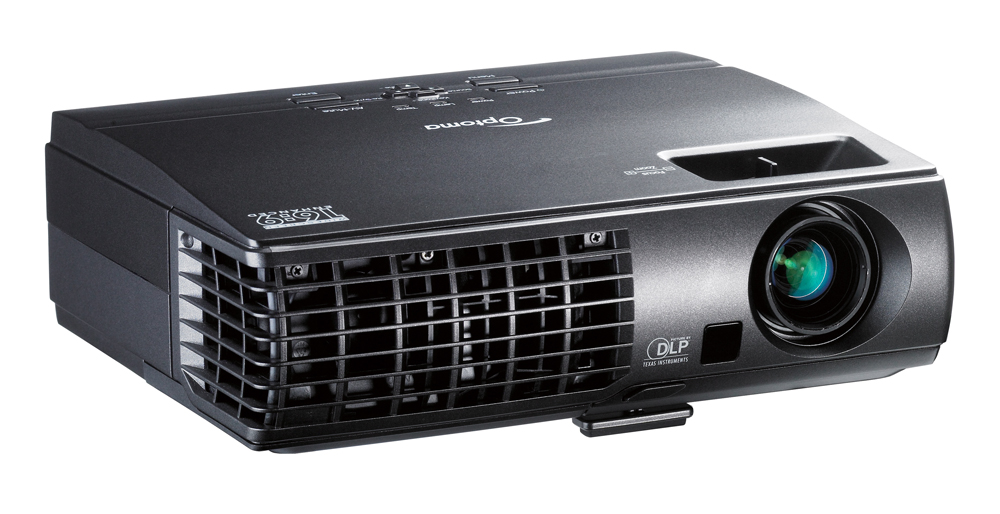

The Optoma EW1691e is a BrilliantColor-DLP projector offering 3000 ANSI lumens, a contrast of 2500:1 and a resolution of WXGA 1280 x 768. The manufacturer specifies a runtime of 2000 hours for this projector's lamp.
A look at the light output reveals: The 3000 ANSI lumens are sufficient to illuminate an image width of up to 556 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 371 cm.
For media input, video signals up to 1080P are supported.
The projector was released in 2010 and is officially no longer distributed by Optoma. This model continues to hold a solid place in our database search queries.

Display Type

1 x 0,65" DDR DLP Chip
WXGA 15/9 Ti Digital Light Processing Chip

Ansi-Lumen

Projector

3000

Screen

1250 Lux (200 cm Screen width)

Contrast

2500:1 full on/off

Black Level

1,2000 min. Lumen

0,5 min. Lumen

Offset

78% 34 cm over screen top edge →

SCREEN

+ Projector

Resolution

WXGA 1280 x 768
983.040 Pixel

Video Modes

PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p

Application

Micro-Portabel | Mobile presentations and external training.
Medium screen width or rooms with a little more ambient light, max. 200 lumens.

Light Source

220W Lamp
Article Nr.: DE.5811100908

Order Lamp
78,42 - 108,53 €

Light Life

2000 h. 3000 h. in Eco Mode

Operating Costs

Calculated brightness quality
The screen width may also be larger. Perfect

300 - 360 cm


	Lux:	1250 Lux
	Contrast:	2500:1
	Candela pro m²:	397 cd/m²
	Foot-Lamberts:	116 fL

94 cm

•

Focus

Manual

Zoom

Manual 1,15

Objective

F=2,55-2,72 f=21,3-24,5 mm

Throw Ratio

1,5-1,8:1 show

Audio

1W Mono

Connections

HDMI
D-sub 15 pin in
S-Video in
Cinch Video in

Ceiling Mounting

Yes, is possible.

Power

280W / 5W standby

Size WxHxD

220 x 71 x 178 mm (8,7"x2,8"x7") 2,78 L/dm³

Operating Noise

36 / 33 dB in Eco Mode

Key: 267 cm

	Key: 79 cm

Weight

1,40 kg / 3,09 lbs.

Keystone

Vert.: +/-30°

Illumination

85%

Frequenz

H-sync: 15-91,4 kHz
V-sync: 43-87 Hz

Foot-Lamberts

116 fL / max. 556 cm screen width

Candela m²

397 cd/m²

Features

Full HD 1080P compatible

Freeze

User logo

Eco Mode

Kensington Slot

sRGB

Digital image shift

Password protection

BrilliantColor™

Remote control with laser pointer und mouse control

Overscan adjustable

Screen Mirroring

Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads

In Comparison

The Optoma EW1691e compared to others not current "Micro-Portabel" projectors.

Ansi-Lumen:

Weight:

Contrast:

dB:

Black level:

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

59 (From: 393)

Optional accessories
	lamp ruby	Ruby-LMP19151	108,53 €
	lamp Original	BL-FS220B / DE.5811100908	EOL €
	Compatible lamp	LMP-K19122	78,42 €
	Universal Remote	Fernb-uni-V3	22,31 €
	remote control Original	DE.5041818200	EOL €
	Ceiling Mount 100-120	Halterung100	47,86 €

Status

2010 Discontinued (EOL) // Last update of the data: 2026-06-09

Data

Optoma Website

Product Sheet english

Product Sheet english HC

User Manual english (10.39 MB)
