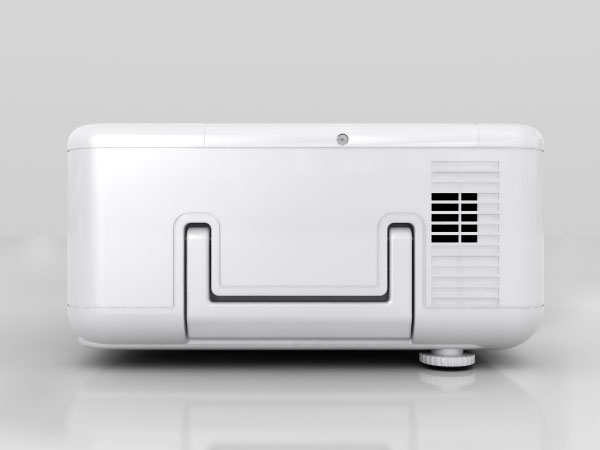

As a projector for the Stationary sector, the Nec NP4100W is equipped with 5500 ANSI lumens, a WXGA 1280 x 800 resolution and a contrast of 2100:1. The manufacturer specifies a runtime of 2000 hours for this projector's lamp. Both optical image shifting (lens shift) and digital keystone adjustment are included, enabling exact alignment on the screen. To meet a wide variety of installation conditions, the projector offers the option of using different interchangeable lenses. Verifying the respective distances is easily possible via the Projector Calculator. A look at the light output reveals: The 5500 ANSI lumens are sufficient to illuminate an image width of up to 753 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 502 cm. Regarding signal processing, the model is compatible with incoming 1080P content. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Since entering the market in 2009, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
1 x 0,65" DLP Chip WXGA 16/10 Ti Digital Light Processing Chip
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Wide screen width or rooms with plenty of light (over 200 lumens).
Calculated brightness quality The screen width may also be larger. Perfect
Lux:
2200 Lux
Contrast:
2100:1
Candela pro m²:
699 cd/m²
Foot-Lamberts:
204 fL
63 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
2 x 3W Stereo
Connections
DVI-D mit HDCP in
D-sub 15pin in und out
5 x BNC RGBHV in
YUV in
S-Video in
Cinch Video in
Mini Jack Audio in und out
RS232C
USB Typ B
RJ45
12V Trigger out
Full HD 1080P compatible Direkt Power Off Lens shift Funktion Freeze Eco Mode sRGB 24/7 continuous operation capable Password protection BrilliantColor™ Remote control with laser pointer und mouse control Lan network compatible. 6-segment colour wheel technology.
Full HD 1080P compatible
