Nec NC800C

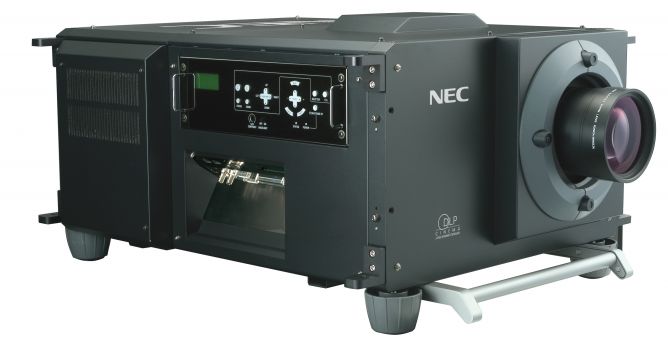

Image Nec NC800C
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The Nec NC800C is a DLP projector offering 5500 ANSI lumens, a contrast of 2000:1 and a resolution of HD2K 2048 x 1080.
A major advantage for professional installations is the ability to use interchangeable lenses, allowing the projector to adapt to highly varied projection distances. Which optic is required for a specific case can easily be calculated via the Projector Calculator.
Looking at practical performance, up to 646 cm can be illuminated with 5500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 431 cm.
For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket.
The projector was released in 2006 and is officially no longer distributed by Nec. In our projector directory, the device still generates high interest.
Display Type       3 x 1,2" DLP Chip
      HD2K 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
5500
Screen
1833 Lux (200 cm Screen width)
Contrast 2000:1 full on/off 2000:1 full on/off
Black Level 2,7500 min. Lumen 0,918 min. Lumen
Offset -
Resolution HD2K 2048 x 1080
2.211.840 Pixel
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Application E-Cinema | Digital Cinema (D-Cinema) in the movie theater.
Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source 1250W Xenon Lamp
Light Life -
Operating Costs -
Calculated brightness quality
The screen width may also be larger. Perfect
Lux: 1833 Lux
Contrast: 2000:1
Candela pro m²: 582 cd/m²
Foot-Lamberts: 170 fL

Screen width:cm
          Room:
Focus Powered
Zoom Powered
Objective
Throw Ratio optional
Audio Nein
Connections 2 x DVI-D in
2 x SDI in
PCMCIA Slot In
USB in
2 x RJ45 in
weitere Anschlüsse optional
Ceiling Mounting Yes, is possible.
Power 1700W
Size WxHxD 670 x 423 x 752 mm (26,4"x16,7"x29,6") 213,12 L/dm³
Operating Noise 45dB

Weight 66,00 kg / 145,51 lbs.
Keystone -
Illumination -
Frequenz -
Foot-Lamberts 170 fL / max. 646 cm screen width
Candela m² 582 cd/m²
Features Control via web browser
Optional Wi-Fi network compatible.
Lan network compatible.
Screen Mirroring -
In Comparison
The Nec NC800C compared to others not current "E-Cinema" projectors.
Ansi-Lumen:
1 Weight:
93
Contrast:
1 dB:
59
Black level:
93 Power cons.:
81
Picture Total Points:32 Projector Total Points:78
Popularity Top 100
30 popularity points 20 popularity points 29 popularity points 3 popularity points 11 popularity points 14 popularity points
Points:
14
Ranking: 86 (From: 142)
Optional accessories
ceiling bracketHeavyDuty470,94 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
L2K-30ZM 3-4.3:1 600-860 m Powered
L2K-22ZM 2.2-3:1 440-600 m Powered
L2K-18ZM 1.8-2.4:1 360-480 m Powered
L2K-14ZM 1.45-1.8:1 290-360 m Powered
Status 2006 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Nec Website
Product Sheet english
Product Sheet english HC
Product Sheet english Serie
Product Sheet english Serie 2
Product Sheet english Serie 3
Product Sheet english Serie 4
Product Sheet japanisch
User Manual english (2.62 MB)

Projektor Nec NC800C
