| Customer review |
|
 |
|
| Display Type |
3 x 0,96" DLP Chip
HD2K 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
- |
Screen |
Lux (200 cm Screen width) |
| Contrast |
1650:1 full on/off |
-
|
| Black Level |
- |
- |
| Lens shift |
Vert.: +55% -50% Hori.: +/-11%
|
+
Projector
|
| Resolution |
HD2K 2048 x 1080
2.211.840 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
E-Cinema | Digital Cinema (D-Cinema) in the movie theater.
Very narrow picture width and rooms with very little light. |
| Light Source |
Laser
|
|
| Light Life |
20000 h. |
| Operating Costs |
0,00 € Laser
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
Nein |

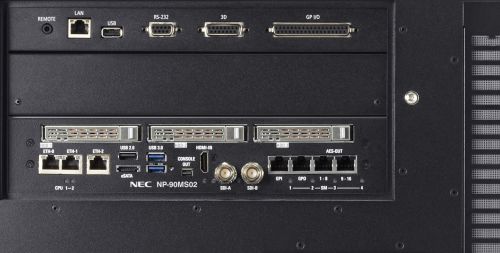

| Connections |
2 x HDMI in
2 x 3GSDI
1 x USB2
2 x USB3
1 x eSATA
1xGPIO (D-sub 37 pin female)
1xGPIO (3D) (D-sub 15 pin female)
RS232C Din 9 pin in
RJ45 in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
1304W |
| Size WxHxD |
680 x 333 x 860 mm (26,8"x13,1"x33,9") 194,74 L/dm³
|
| Operating Noise |
47dB |
Shift: 83 cm
|
Shift: 22 cm
|
|
Shift: 22 cm
|
| |
|
|
| Weight |
66,00 kg / 145,51 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
- |
| Candela m² |
- |
| Features |
 Lens shift Funktion
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Nec NC1201L compared to others not current "E-Cinema" projectors. |
| Ansi-Lumen: |
|
0 |
Weight: |
|
93 |
| Contrast: |
|
1 |
dB: |
|
54 |
| Black level: |
|
100 |
Power cons.: |
|
86 |
| Picture Total Points: | 0 |
Projector Total Points: | 78 |
|
| Popularity Top 100 |
|
| Points: |
|
14 |
| Ranking: |
85 (From: 142) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| NP-9LS40ZM1 | 4.31-6.77:1 | 862-1354 m |
55-50% |
+/-11% |
Powered |
| NP-9LS20ZM1 | 2.23-4.16:1 | 446-832 m |
+/-50% |
+/-11% |
Powered |
| NP-9LS16ZM1 | 1.73-2.88:1 | 346-576 m |
+/-50% |
+/-11% |
Powered |
| NP-9LS13ZM1 | 1.42-2.24:1 | 284-448 m |
+/-50% |
+/-11% |
Powered |
| NP-9LS12ZM1 | 1.28-1.83:1 | 256-366 m |
+/-50% |
+/-11% |
Powered |
|
| Status |
2016 Discontinued (EOL) // Last update of the data: 2025-02-26
|
