Epson EMP 61

Image Epson EMP 61
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Based on LCD technology, the Epson EMP 61 device delivers 2000 ANSI lumens, a resolution of SVGA 800 x 600 and a contrast of 400:1 as a projector. The manufacturer rates the durability of the included lamp at 2000 hours.
Regarding projection size, the value of 2000 ANSI lumens allows for an image width of up to 389 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 259 cm.
This model dates back to 2004 and is no longer part of Epson's current product range.
Display Type       3 x 0,7" LCD TFT Panel
      SVGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
2000 / 1500 im Eco Mode
Screen
667 Lux (200 cm Screen width)
Contrast 400:1 full on/off 400:1 full on/off
Black Level 5,0000 min. Lumen 1,68 min. Lumen
Offset 40% 15 cm under screen top edge →
SCREEN
+ Projector
Resolution SVGA 800 x 600
480.000 Pixel
SXGA 1280~1024 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p,
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens.

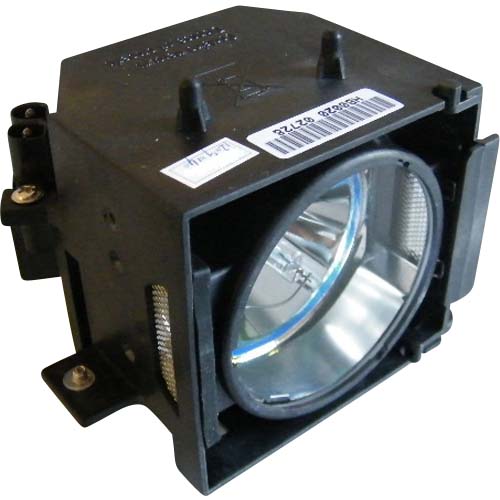

Light Source 200W UHE Lamp
Article Nr.: ELPLP30
Order Lamp
55,24 - 109,83 €
Light Life 2000 h. 3000 h. in Eco Mode
Operating Costs -
Calculated brightness quality Perfect
288 - 352 cm
Lux: 667 Lux
Contrast: 400:1
Candela pro m²: 212 cd/m²
Foot-Lamberts: 62 fL
60 cm

Screen width:cm
          Room:
Focus Manual
Zoom Manual 1,2
Objective -
Throw Ratio 1,44-1,76:1 show
Audio 5W Mono
Connections 2 x D-sub 15pin in 1 x out
Cinch Video in
S-Video in
RS232C in

USB in
Mini Jack in und out
Ceiling Mounting Yes, is possible.
Power 280W / 5W standby
Size WxHxD 350 x 109 x 272 mm (13,8"x4,3"x10,7") 10,38 L/dm³
Operating Noise 36 / 30 dB in Eco Mode
Key: 137 cm
Key: 17 cm

Weight 4,00 kg / 8,82 lbs.
Keystone Vert.: +/-15°  automatisch
Illumination 85%
Frequenz H-sync: 15-107 kHz
V-sync: 50-120 Hz
Range max.: 230 MHz
Foot-Lamberts 62 fL / max. 389 cm screen width
Candela m² 212 cd/m²
Features Freeze
Blackboard Modus
User logo
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
sRGB
Password protection
Screen Mirroring -
In Comparison
The Epson EMP 61 compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
23 Weight:
81
Contrast:
1 dB:
33
Black level:
81 Power cons.:
97
Picture Total Points:35 Projector Total Points:70
Popularity Top 100
3 popularity points 7 popularity points 7 popularity points 2 popularity points 1 popularity points 5 popularity points
Points:
5
Ranking: 2016 (From: 7737)
Optional accessories
lamp ruby Ruby-LMP1481109,83 €
lamp OriginalELPLP30 / V13H010L30EOL €
Compatible lamp LMP-K148155,24 €
Universal Remote Fernb-uni-V322,31 €
air filter OriginalELPAF06 / V13H134A06EOL €
ceiling bracket length: 100-120mmHalterung10047,86 €
Status 2004 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Epson Website
Product Sheet english HC
Product Sheet Japanisch
Product Sheet PowerLite 61p
Quik Start Guide
Press release english
User Manual english (4.34 MB)
