This projector is named PJD7333, originates from Viewsonic, and its data sheet shows 4000 ANSI lumens, a contrast of 15000:1 and a resolution of XGA 1024 x 768. The runtime of the lamp in this model is estimated at 2500 hours before a replacement is necessary. Looking at practical performance, up to 551 cm can be illuminated with 4000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 367 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P as well as 3D. As an additional feature, an integrated media player enables the direct playback of files without an external source device. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. This model dates back to 2013 and is no longer part of Viewsonic's current product range.
Display Type
1 x 0,55" DLP Chip XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
4000
Screen
1333 Lux (200 cm Screen width)
Contrast
15000:1 full on/off
15000:1 full on/off
Black Level
0,2667 min. Lumen
0,089 min. Lumen
Offset
-
Resolution
XGA 1024 x 768
786.432 Pixel UXGA 1600 x 1200 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Wide screen width or rooms with plenty of light (over 200 lumens).
HDMI in
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
USB Typ A, B in
RJ45 in
RS232C Din 9 pin in
12V Trigger out
Ceiling Mounting
Yes, is possible.
Power
350W
Size WxHxD
335 x 128,30 x 265 mm (13,2"x5"x10,4") 11,36 L/dm³

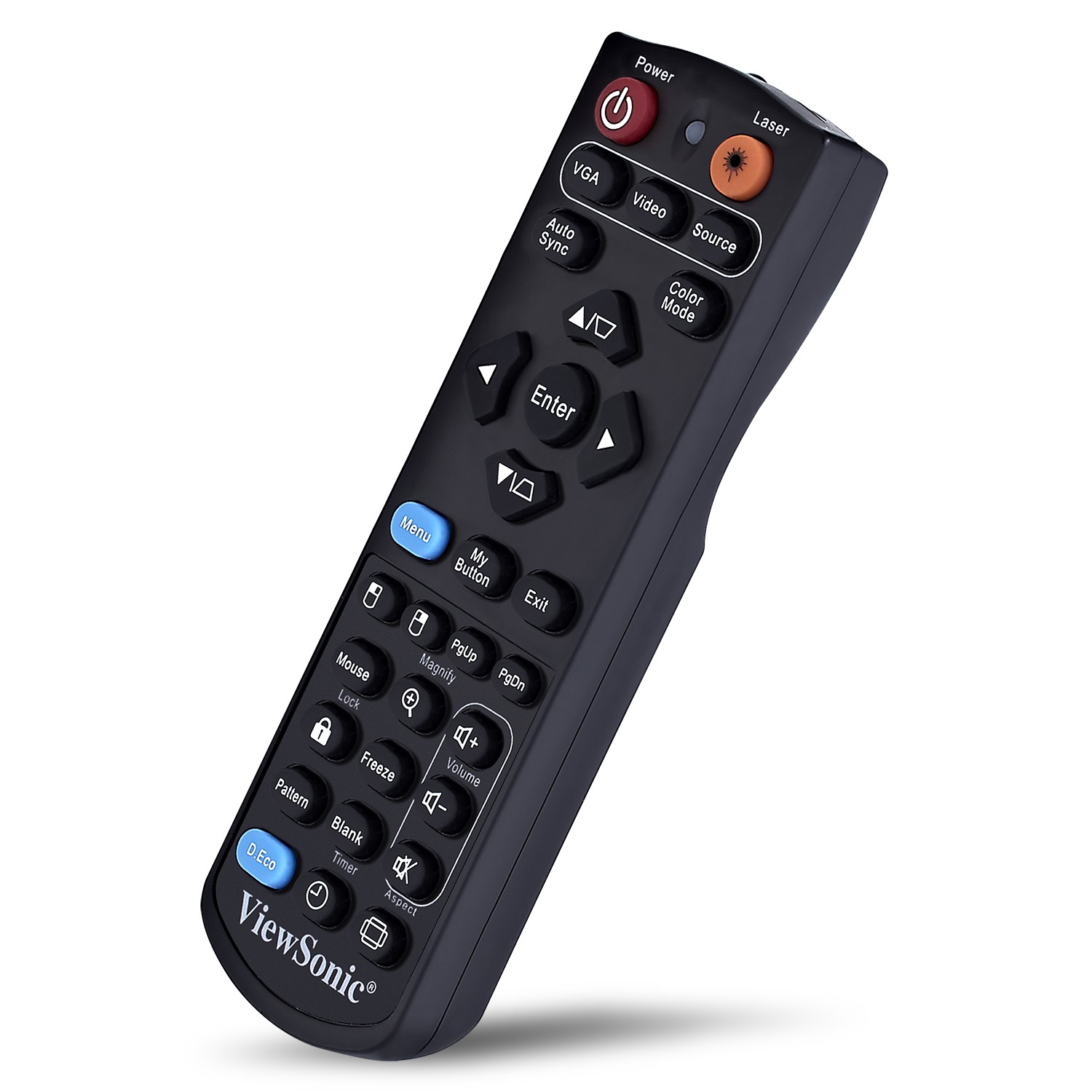

Real Full HD 3D Full HD 1080P compatible Integrated Mediaplayer Freeze Eco Mode Kensington Slot BrilliantColor™ Remote control with laser pointer und mouse control Optional Wi-Fi network compatible. Lan network compatible. Crestron®-Software compatible. DICOM simulation 6-seg RGBCYW colour wheel Digital zoom 1.6x.
Real Full HD 3D
