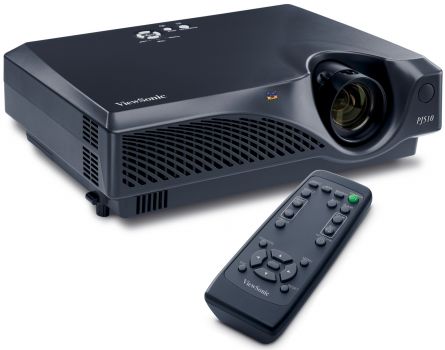

As a projector, the Viewsonic PJ510 combines LCD technology with a resolution of SVGA 800 x 600, and is additionally specified with 1200 ANSI lumens and a contrast of 300:1. According to Viewsonic, the lamp has a durability of 2000 hours. Regarding projection size, the value of 1200 ANSI lumens allows for an image width of up to 302 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 201 cm. This model dates back to 2003 and is no longer part of Viewsonic's current product range.
Display Type
3 x 0,55" LCD TFT Panel mit MLA SVGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
1200 / 960 im Eco Mode
Screen
400 Lux (200 cm Screen width)
Contrast
300:1 full on/off
300:1 full on/off
Black Level
4,0000 min. Lumen
1,347 min. Lumen
Offset
40% 15 cm under screen top edge →
SCREEN
+Projector
Resolution
SVGA 800 x 600
480.000 Pixel UXGA 1600 x 1200 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Small screen width, rooms with very little ambient light below 50 lumens.
Menu -> Options -> Filter timer -> press and hold the triangle to the right for approx. 3 seconds. done
But everything is also in the English operating instructions -> Download, is useful
Autor:
Heiko 06.06.06
5
Stars
Clean the air filter
this is how I do it
Autor:
Carsten Engel 16.05.06
4
Stars
Cleaning the air filter
Hello, I have to clean the air filter after 100 hours of operation, that‘s no problem but I can‘t reset the filter in the menu. Does anyone know how to reset it?
