| Customer review |
|
 |
|
| Display Type |
3 x 0,82" LCOS Panel
QXGA 4/3 Liquid Crystal on Silicon (LCOS)
|
| Ansi-Lumen |
Projector |
2800 |
Screen |
933 Lux (200 cm Screen width) |
| Contrast |
6000000:1 dynamic contrast |
6000000:1 dynamic contrast
|
| Black Level |
0,0005 min. Lumen |
0 min. Lumen |
| Lens shift |
Vert.: +/-50% Hori.: +/-25%
|
+
Projector
|
| Resolution |
QXGA 2048 x 1536
3.145.728 Pixel |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Rear Projection | Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |

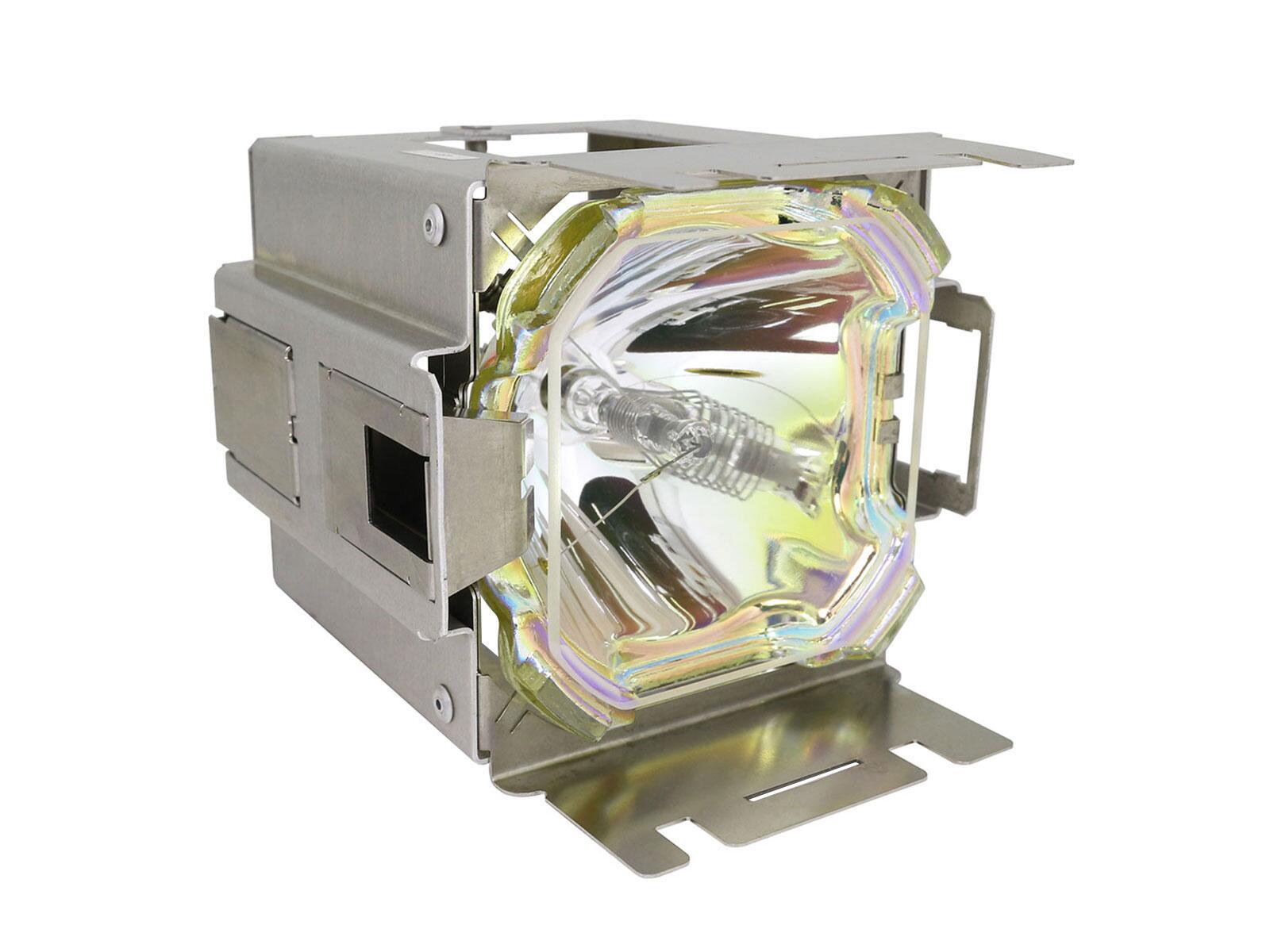

380W UHP Lamp
Article Nr.: R9841805
|
|
| Light Life |
2000 h. 3000 h. in eco Mode |
| Operating Costs |
-
|
Calculated brightness quality Perfect
|
|
 |
|
Lux: |
933 Lux |
|
Contrast: |
6000000:1 |
|
Candela pro m²: |
298 cd/m² |
|
Foot-Lamberts: |
87 fL |
|
 |
|
|
| |
| • |
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
- |
| Connections |
RGBHV in
2 x Dual DVI in |
| Ceiling Mounting |
- |
| Power |
600W |
| Size WxHxD |
370 x 270 x 555 mm (14,6"x10,6"x21,9") 55,44 L/dm³
|
| Operating Noise |
- |
Shift: 75 cm
|
Shift: 50 cm
|
|
Shift: 50 cm
|
| |
|
|
| Weight |
27,60 kg / 60,85 lbs. |
| Keystone |
- |
| Illumination |
90% |
| Frequenz |
- |
| Foot-Lamberts |
87 fL
/ max. 461 cm screen width |
| Candela m² |
298 cd/m² |
| Features |
 Lens shift Funktion
Eco Mode
|
|
- |
In Comparison
The Barco SIM 7Q HB compared to others not current "Rear Projection" projectors. |
| Ansi-Lumen: |
|
42 |
Weight: |
|
47 |
| Contrast: |
|
100 |
dB: |
|
0 |
| Black level: |
|
100 |
Power cons.: |
|
85 |
| Picture Total Points: | 81 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
72 |
| Ranking: |
8 (From: ) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| R9849980 | 1.4-2:1 | 280-400 m |
+/-50% |
+/-25% |
Powered |
| R9849975 | 1-1.4:1 | 200-280 m |
+/-50% |
+/-25% |
Powered |
| R9829640 | 0.8:1 | 160 m |
0.0% Fix |
|
No Zoom |
|
| Status |
2011 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english
Product Sheet english HC
|
Popular Alternatives
|
|
2800 ANSI-Lumen
|
Barco Website
