JVC DLA X3B/W

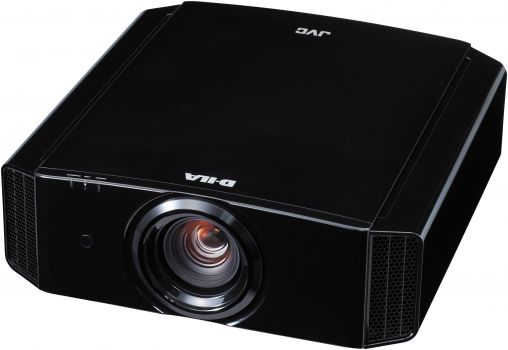

Image JVC DLA X3B/W
Customer review
4.2 from 5 Stars 5 Reviews
Offer Ads
Discover other popular projectors on Amazon!
Model Overview This projector is named DLA X3, originates from JVC, and its data sheet shows 1300 ANSI lumens, a contrast of 50000:1 and a resolution of HDTV 1920 x 1080. The manufacturer rates the durability of the included lamp at 3000 hours. This model is available with either a black or white housing.
An integrated lens shift provides significant leeway for placement. The lens can be adjusted to perfectly align the image even with off-center installations – exact dimensions are provided by the Distance Calculator.
Looking at practical performance, up to 366 cm can be illuminated with 1300 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 244 cm.
For media input, video signals up to 1080P as well as 3D are supported.
In the specifications, the operating noise is listed at a mere 20 decibels, indicating very quiet cooling. Since entering the market in 2010, production has been discontinued; the manufacturer no longer actively offers the model. In our projector directory, the device still generates high interest.
Display Type       3 x 0,7" DILA Chip
      HDTV 16/9 Direct-Drive Image Light Amplification (D-ILA)
Ansi-Lumen
Projector
1300
Screen
578 Lux (200 cm Screen width)
Contrast 50000:1 full on/off 50000:1 full on/off
Black Level 0,0260 min. Lumen 0,012 min. Lumen
Lens shift Vert.: +/-80% Hori.: +/-34%
 Lens shift
80%  90cm
80%  90cm
34%  68cm
34%  68cm
+ Projector
Resolution HDTV 1920 x 1080
2.073.600 Pixel
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p
Disc Recognition DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray
3D Compatibility
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready)
Application High-End Homecinema | Small screen width, rooms with very little ambient light below 50 lumens.
Light Source 220W UHP Lamp
Article Nr.: PK-L2210U
Order Lamp
50,94 - 122,59 €
Light Life 3000 h.
Operating Costs -
Calculated brightness quality Perfect
280 - 560 cm
Lux: 578 Lux
Contrast: 50000:1
Candela pro m²: 185 cd/m²
Foot-Lamberts: 54 fL
90 cm



Screen width:cm
          Room:
Focus Powered
Zoom Powered 2
Objective -
Throw Ratio 1,4-2,8:1 show
Audio Nein
Connections 2 x HDMI 1.4a
YUV in
RS232C
12V Trigger out
Ceiling Mounting Yes, is possible.
Power -
Size WxHxD 455 x 179 x 472 mm (17,9"x7"x18,6") 38,44 L/dm³
Operating Noise 20dB

Shift: 90 cm

Shift: 68 cm

Shift: 68 cm

Shift: 90 cm

Weight 14,70 kg / 32,41 lbs.
Keystone -
Illumination -
Frequenz -
Foot-Lamberts 54 fL / max. 366 cm screen width
Candela m² 185 cd/m²
Features Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Gamma correction
Dynamic iris
Remote control with backlight
Built-in auto lens protection
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The JVC DLA X3B/W compared to others not current "High-End Homecinema" projectors.
Ansi-Lumen:
9 Weight:
73
Contrast:
3 dB:
97
Black level:
99 Power cons.: 0
Picture Total Points:37 Projector Total Points:0
Popularity Top 100
15 popularity points 25 popularity points 30 popularity points 9 popularity points 20 popularity points 26 popularity points
Points:
26
Ranking: 47 (From: 508)
In Test -
Optional accessories
Osram bulb only NLMP24644101,99 €
lamp ruby Ruby-LMP24644122,59 €
lamp OriginalPK-L2210U / PK-L2210UEEOL €
Compatible lamp LMP-K1997950,94 €
ceiling bracket white Halterung45W83,60 €
Status 2010 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
JVC Contact
Product Sheet english
Product Sheet english 2
Product Sheet english HC
User Manual english (8.22 MB)

Projektor JVC DLA X3B/W Projektor JVC DLA X3B/W Projektor JVC DLA X3B/W Projektor JVC DLA X3B/W Projektor JVC DLA X3B/W Projektor JVC DLA X3B/W Projektor JVC DLA X3B/W Projektor JVC DLA X3B/W Projektor JVC DLA X3B/W Projektor JVC DLA X3B/W Projektor JVC DLA X3B/W Projektor JVC DLA X3B/W



Popular Alternatives
1300   ANSI-Lumen
1300ANSI‎H6Xiaoxin 100PA357DL03 Pro
Model 1300ANSI‎H6Xiaoxin 100PA357DL03 Pro
Ansi-Lumen 13001300130013001300
Specifications HDTV LED LAN WLAN HDTV LED WLAN HDTV LED WLAN HDTV LED WLAN HDTV LED WLAN
Compare CompareCompareCompareCompareCompare


All: 4.2 from 5 Stars 5 Reviews

Autor: 07.02.12
5 Stars TOP projector in 2D/3D
Have swapped my Sony VPL-HW15 for the JVC, no comparison, the JVC is definitely the unbeaten contrast champion in 2D (after calibration) anyway and also 3D enthusiastic, can neither flicker, ghosting, double contours or similar and that with 25 tested 3D films so far, I can only recommend it, I for one would buy it again immediately! Thumbs up !!!!
Autor: 28.12.11
5 Stars Great picture
I had a look at the JVC at a specialist dealer and was particularly impressed by the cinematic look of the picture.
I really liked the color reproduction and contrast impression of the X 3. The e-shifting is also a practical feature. I will probably get this beautifully designed device in white, as this dealer still offers remaining stock at a good price.
Autor: 28.12.11
5 Stars Top beamer!
I can‘t understand the previous poster‘s statements at all. I didn‘t expect such an outstanding black level and contrast in this price range. The Sony HW 30 is dramatically worse in direct comparison (had the opportunity to compare 5 devices directly at the dealer) in terms of image contrast / black level...The Sony has a very "muddy" image and little punch. With the iris switched off, it is even worse (the iris creates brightness fluctuations "pumping" the brightness when the picture content changes quickly from dark to light and vice versa). The
JVC, on the other hand, does not need an iris! The FI with 120 HZ works excellently in 2d, produces a super-smooth, very sharp image in motion... This is not absolutely necessary in 3d, the image is still good (besides, 99% of films are released in 2 and 3d is more likely to be seen as a nice extra in the next few years. The electronic lens shift and lens memory is a super-fine thing, if I imagine I had to run to the projector several times in the evening, get a ladder and change the shift from 21:9 to 16:9 and vice versa, that would be a horrible idea ;-) I‘m super happy with the JVC.
Autor: 28.11.11
2 Stars Very dissatisfied!
Unfortunately, the negative aspects outweigh the positive ones! 3D image is not acceptable to me. Particularly in animated films, ghosting is visible in almost all image content. (Animals United, for example) In the IMAX 3D Wild Ocean, there are animated sequences in the opening credits! Double contours are visible in all image content. Pixel noise in 2D mode is particularly annoying on TV! I ordered the HW 30 for comparison. It works almost flawlessly in all areas. Since I value motorized optics, I tried JVC. The disappointment is very big for me. JVC is no longer an option for me. Even the blurred image during movements is unacceptable. Sony is still a big step ahead! For 3D, a good FI is highly recommended. Too bad! Contrast is not everything. In the white living room, the X3 was out of its league anyway.
Autor: 24.02.11
4 Stars JVC DLA X3
I‘ve owned the projector for 4 weeks and I‘m very satisfied.
I‘m also completely convinced by the 3D projection in this case.
The fan is also extremely quiet in the Eco module.
At this price, you can definitely buy the device.
