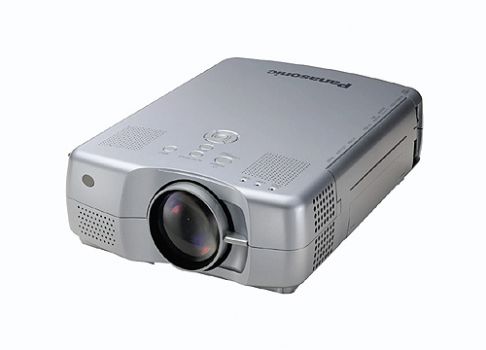

According to Panasonic, the PT L511E model has 1500 ANSI lumens and a resolution of SVGA 800 x 600. The runtime of the lamp in this model is estimated at 2000 hours before a replacement is necessary. For maximum setup flexibility, the model supports optional interchangeable lenses, meaning the optics can be precisely matched to individual on-site requirements. Suitable distances can be determined using the Distance Calculator. Regarding projection size, the value of 1500 ANSI lumens allows for an image width of up to 337 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 225 cm. This is a discontinued model that is no longer officially distributed by Panasonic.
SVGA 800 x 600
480.000 Pixel
XGA 1024 x 768 compressed
Video Modes
NTSC, PAL, SECAM Pal 60 NTSC 4,43
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Small screen width, rooms with very little ambient light below 50 lumens.
Cinch Video in
RGB1 in D sub HD 15-Pin
RGB2 in D sub HD 15-Pin
S-Video in Mini-DIN 4-Pin
Video in RCA-Klinkenstecker
Audio in RGB: Stereo-Mini-Klinkenstecker
Video: RCA-Klinkenstecker (L/R)
Audio out Stereo-Mini-Klinkenstecker
RS232C D sub 9-Pin
Freeze Eco Mode Kensington Slot Gamma correction Im gegensatz zu seinen kleinen Bruder 501e hat der 511e nur 400 Ansi Lumen mehr. Liegt wohl am besseren Panel.
Freeze
Panasonic Website
Product Sheet english
