Sanyo PLC SW36
Sanyo LP SW36

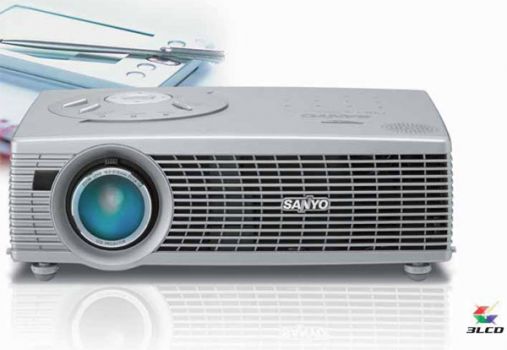

Image Sanyo PLC SW36
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Known as the PLC SW36, this LCD projector by Sanyo features basic specs of 1500 ANSI lumens and a SVGA 800 x 600 resolution. The manufacturer specifies a runtime of 2000 hours for this projector's lamp.
A look at the light output reveals: The 1500 ANSI lumens are sufficient to illuminate an image width of up to 337 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 225 cm.
The projector was released in 2006 and is officially no longer distributed by Sanyo.
Display Type       3 x 0,55" LCD TFT Panel
      SVGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
 1500
Screen
 500 Lux (200 cm Screen width)
Contrast - -
Black Level - -
Offset 40% 15 cm under screen top edge →
SCREEN
+ Projector
Resolution SVGA 800 x 600
480.000 Pixel
XGA 1024 x 768 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 50 lumens.
Light Source 160W UHP Lamp
Article Nr.: 610 317 7038
Order Lamp
62,15 - 107,37 €
Light Life 2000 h. 2500 h. in Eco Mode
Operating Costs -
Calculated brightness quality Perfect
328 - 392 cm
Lux: 500 Lux
Contrast:
Candela pro m²: 158 cd/m²
Foot-Lamberts: 46 fL
60 cm

Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,2
Objective F=1,6-1,8 f=18,3-21,9 mm
Throw Ratio 1,64-1,96:1 show
Audio 1 x 0,8W
Connections D-sub 15 pin in und out
S-Video in
Cinch Video in
RS232C Din 8pin
Mini Jack in und out
Ceiling Mounting Yes, is possible.
Power 245 / 190W in Eco Mode
Size WxHxD 270 x 77,9 x 190 mm (10,6"x3,1"x7,5") 3,95 L/dm³
Operating Noise -
Key: 179 cm
Key: 59 cm
Weight 2,20 kg / 4,85 lbs.
Keystone Vert.: +/-20°
Illumination 85%
Frequenz H-sync: 15-80 kHz
V-sync: 50-100 Hz
Range max.: 100 MHz
Foot-Lamberts 46 fL / max. 337 cm screen width
Candela m² 158 cd/m²
Features Freeze
Blackboard Modus
Eco Mode
Kensington Slot
Gamma correction
Password protection
16x digital zoom
10-bit gamma correction
De-interlacer with 3:2 pull down
Screen Mirroring -
In Comparison
The Sanyo PLC SW36 compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
17 Weight:
90
Contrast: 0 dB: 0
Black level:
100 Power cons.:
98
Picture Total Points:0 Projector Total Points:0
Popularity Top 100
2 popularity points 7 popularity points 6 popularity points 1 popularity points 1 popularity points 4 popularity points
Points:
4
Ranking: 2997 (From: 7737)
Optional accessories
lamp ruby Ruby-LMP4655107,37 €
lamp Original610-317-7038 / LMP78 / ET-SLMP78EOL €
Compatible lamp LMP-K1677562,15 €
Universal Remote Fernb-uni-V322,31 €
ceiling bracket length: 100-120mmHalterung10047,86 €
Airfilter universaluni3mm18,15 €
Status 2006 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Sanyo Website
Product Sheet english
Product Sheet english HC
User Manual english (2.14 MB)
