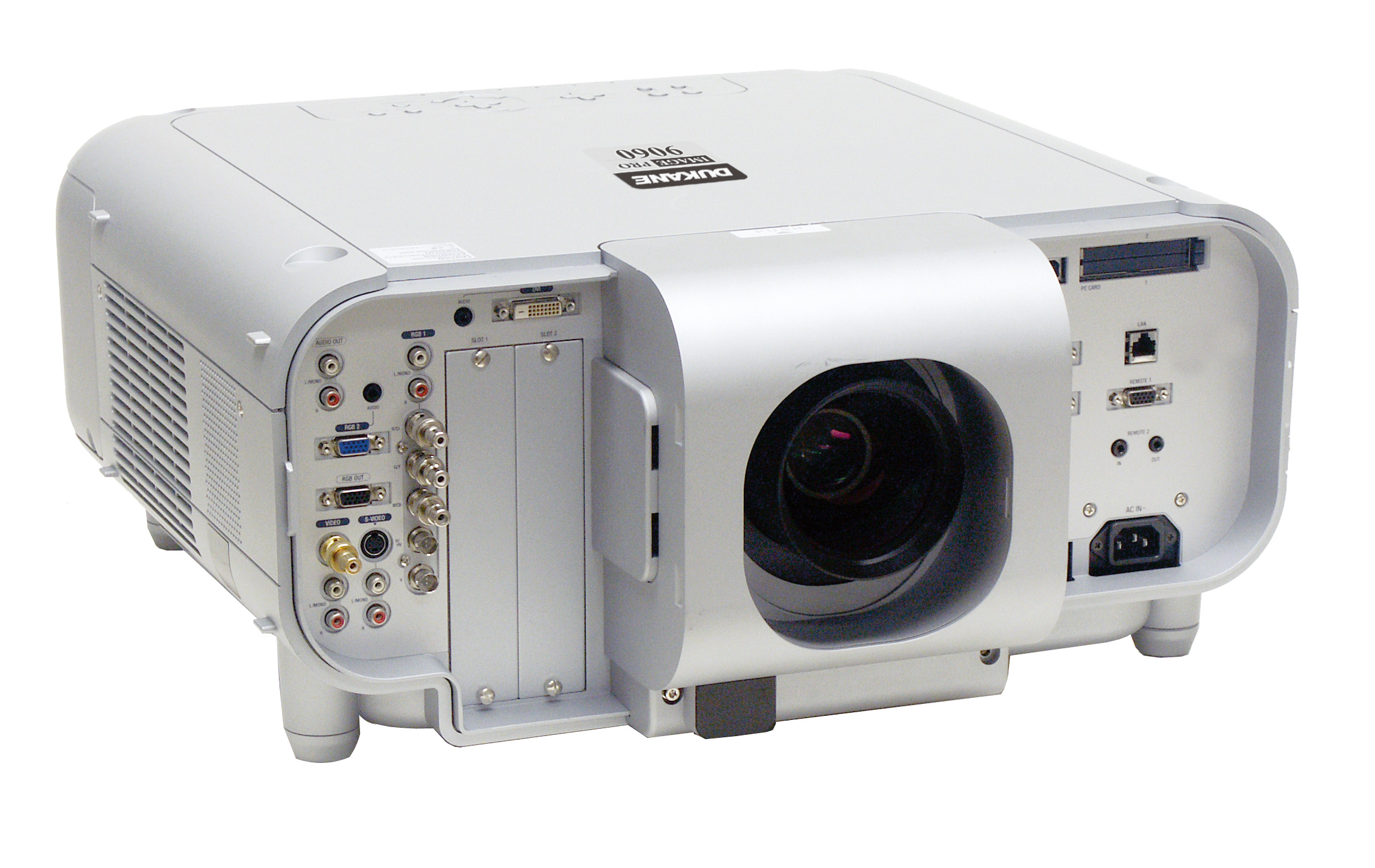

The Dukane ImagePro 9060 is a LCD projector that brings 6000 ANSI lumens, a XGA 1024 x 768 resolution alongside a contrast of 700:1. According to Dukane, the lamp has a durability of 1500 hours. For distortion-free image alignment, the projector offers both a lens shift function and keystone correction, granting significant leeway during mounting. To meet a wide variety of installation conditions, the projector offers the option of using different interchangeable lenses. Verifying the respective distances is easily possible via the Projection Calculator. A look at the light output reveals: The 6000 ANSI lumens are sufficient to illuminate an image width of up to 675 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 450 cm. Regarding signal processing, the model is compatible with incoming 1080P content. Also on board is a local media player that allows reading and playing content directly from storage media. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. The model is currently no longer actively offered on the market by the manufacturer.
XGA 1024 x 768
786.432 Pixel UXGA 1600 x 1200 compressed
Video Modes
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p Media player formats: idx-, Text-, HTML-, JPEG- und BMP-Format
Application
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Calculated brightness quality The screen width may also be larger. Perfect
Lux:
2000 Lux
Contrast:
700:1
Candela pro m²:
637 cd/m²
Foot-Lamberts:
186 fL
75 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
2 x 5W
Connections
D-sub 15pin in und out
Cinch Video in
2 x Cinch Stereo in und out
S-Video in
RJ45 in
5 x BNC RGBHV in
12 V Trigger out
USB-A
2 x PC MCIA Slot
Mini Jack in und out
Ceiling Mounting
Yes, is possible.
Power
800W max./0,9W standby
Size WxHxD
518 x 225 x 548 mm (20,4"x8,9"x21,6") 63,87 L/dm³
Operating Noise
45 / 40 dB in Eco Mode
Shift: 75 cm
Shift: 50 cm
Shift: 50 cm
Shift: 75 cm
Weight
18,40 kg / 40,57 lbs.
Keystone
Vert.: +/-40° Hori.: +/-30°
Illumination
-
Frequenz
H-sync: 30-90 kHz V-sync: 56-85 Hz Range max.: 160 MHz
Full HD 1080P compatible Lens shift Funktion motorisch Integrated Mediaplayer Freeze Eco Mode Kensington Slot sRGB Gamma correction Password protection Control via web browser Lan network compatible. Overscan adjustable Digital zoom 3D reform DCDi by Faroudja
Full HD 1080P compatible
