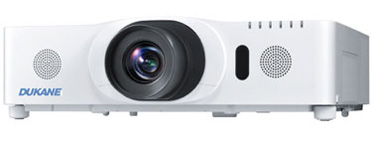

The ImagePro 8976SX is a LCD projector by Dukane, whose specifications list 5000 ANSI lumens, a contrast of 3000:1 and a SXGA+ 1400 x 1050 resolution. The runtime of the lamp in this model is estimated at 2500 hours before a replacement is necessary. Regarding projection size, the value of 5000 ANSI lumens allows for an image width of up to 616 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 411 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P. Furthermore, the model supports 360° projections for highly flexible deployment scenarios. Also on board is a local media player that allows reading and playing content directly from storage media. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Since entering the market in 2012, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
3 x LCD TFT Panel SXGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
5000
Screen
1667 Lux (200 cm Screen width)
Contrast
3000:1 full on/off
3000:1 full on/off
Black Level
1,6667 min. Lumen
0,556 min. Lumen
Offset
-
Resolution
SXGA+ 1400 x 1050
1.470.000 Pixel
Video Modes
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p Media player formats: • JPEG (.jpeg, .JPEG)
• Bitmap (.bmp)
• PNG (.png)
• GIF (.gif)
• Movie (.avi, .mov)
Application
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source
330W Lamp
Light Life
2500 h.
Operating Costs
-
Calculated brightness quality The screen width may also be larger. Perfect
2 x HDMI in
5 x BNC RGBHV in
2 x D-sub 15 pin in
S-Video in
Cinch Video in
Cinch Stereo in
USB Typ A,B in
Mini Jack Audio in und out
RS232C Din 9 pin
RJ45 in
Ceiling Mounting
Yes, is possible.
Power
-
Size WxHxD
498 x 135 x 396 mm (19,6"x5,3"x15,6") 26,62 L/dm³
Operating Noise
37 / 31 dB in Eco Mode
Key: 168 cm
Without offset
Key: 168 cm
Weight
8,70 kg / 19,18 lbs.
Keystone
Vert.: +/-35°
Illumination
-
Frequenz
H-sync: 31,5-106 kHz V-sync: 56-120 Hz Range max.: 150 MHz
Full HD 1080P compatible Integrated Mediaplayer Freeze User logo Eco Mode Kensington Slot Gamma correction Dynamic iris 360° installable Password protection Remote control with mouse control PJLink™ Control via web browser Optional Wi-Fi network compatible. Lan network compatible. Picture-by-picture DICOM support. Status monitor display on rear.
Full HD 1080P compatible
