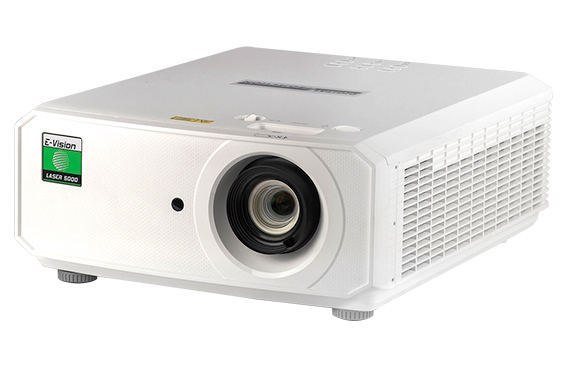

The E-Vision Laser 5K(Preliminary) model is a 3D-DLP projector from Digital Projection, intended for Stationary applications, offering 7500 ANSI lumens, a contrast of 10000:1 at WUXGA 1920 x 1200. The manufacturer lists the lifespan for this model at 20000 hours, which translates to 13.7 years with 4 hours of daily use. To facilitate room installation, the device is equipped with mechanical lens shift and additional keystone correction, allowing the projected image to be positioned with immense flexibility. A major advantage for professional installations is the ability to use interchangeable lenses, allowing the projector to adapt to highly varied projection distances. Which optic is required for a specific case can easily be calculated via the Lens Calculator. Regarding projection size, the value of 7500 ANSI lumens allows for an image width of up to 880 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 587 cm. For media input, video signals up to 1080P as well as 3D are supported. Connectivity for fixed installations is rounded off by an RJ45 port for remote maintenance and an HDBaseT interface, which transmits bundled video, audio, and control data over long cable runs. Equipped with a microphone jack and built-in speakers, audio signals during presentations can be played back directly without an external audio system. This model dates back to 2017 and is no longer part of Digital Projection's current product range.
Display Type
1 x 0,67" DLP Chip WUXGA 16/9 Ti Digital Light Processing Chip
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser
Light Life
20000 h.
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
3333 Lux
Contrast:
10000:1
Candela pro m²:
1062 cd/m²
Foot-Lamberts:
310 fL
56 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
Nein
Connections
HDMI 2.0 in
HDMI 1.4 in
3G-SDI in und out
audio in and out
microphone in
15pin D-Sub in and out
HDBaseT in
3D Sync in und out über BNC
RJ45 in
12V Trigger out
Wired Remote
Real Full HD 3D
