	PDF/Print Version		Add to Watchlist		3D Room Calculator		Comparison >>

Customer review

5 from 5 Stars 1 Review

✎ Help other users and share your review.

Offer Ads

Discover other popular projectors on Amazon!

Model Overview

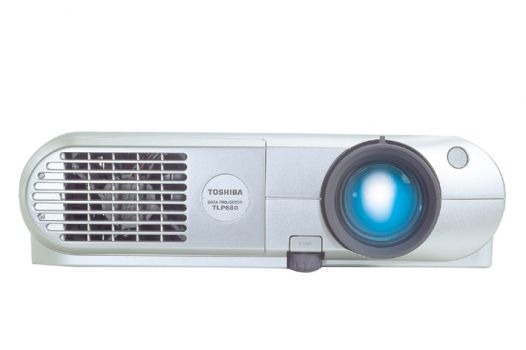

This projector is named TLP 680, originates from Toshiba, and its data sheet shows 1500 ANSI lumens, a contrast of 400:1 and a resolution of XGA 1024 x 768. According to Toshiba, the included lamp lasts up to 2000 hours.
Regarding projection size, the value of 1500 ANSI lumens allows for an image width of up to 337 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 225 cm.
This is a discontinued model that is no longer officially distributed by Toshiba.

Display Type

3 x 0,9" LCD TFT Panel mit MLA
XGA 4/3 Liquid Crystal Display with Micro Lense Array

Ansi-Lumen

Projector

1500

Screen

500 Lux (200 cm Screen width)

Contrast

400:1 full on/off

Black Level

3,7500 min. Lumen

1,259 min. Lumen

Offset

Resolution

XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed

Video Modes

NTSC, PAL, SECAM Pal 60 NTSC 4,43

Application

Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 50 lumens.

Light Source

150W UHP Lamp
Article Nr.: TLPLF6

Order Lamp
70,36 - 101,70 €

Light Life

2000 h.

Operating Costs

| cheap

costly |

11,63% / 0,05 €

Calculated brightness quality Perfect

394 - 514 cm


	Lux:	500 Lux
	Contrast:	400:1
	Candela pro m²:	158 cd/m²
	Foot-Lamberts:	46 fL

•

Focus

Manual

Zoom

Manual 1,31

Objective

F=1,8-2,1 f=36-47 mm

Throw Ratio

1,97-2,57:1 show

Audio

Connections

Cinch Video in
Cinch Stereo Aus. Eingang
S-Video in
VGA Aus Eingang
RS232C

Ceiling Mounting

Yes, is possible.

Power

Size WxHxD

318 x 87 x 232 mm (12,5"x3,4"x9,1") 6,42 L/dm³

Operating Noise

Weight

3,70 kg / 8,16 lbs.

Keystone

Illumination

Frequenz

H-sync: 15-93 kHz
V-sync: 50-85 Hz

Foot-Lamberts

46 fL / max. 337 cm screen width

Candela m²

158 cd/m²

Features

Kensington Slot

Remote control with laser pointer

Screen Mirroring

In Comparison

The Toshiba TLP 680 compared to others not current "Standard-Portabel" projectors.

Ansi-Lumen:

Weight:

Contrast:

dB:

Black level:

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

4393 (From: 7737)

Optional accessories
	Philips bulb only	NLMP4136	72,47 €
	lamp ruby	Ruby-LMP4136	101,70 €
	lamp Original	TLPLF6	EOL €
	Compatible lamp	LMP-K16216	70,36 €
	Universal Remote	Fernb-uni-V3	22,31 €
	ceiling bracket length: 100-120mm	Halterung100	47,86 €
	Airfilter universal	uni3mm	18,15 €

Status

- Discontinued (EOL) // Last update of the data: 2026-06-09

Data

Toshiba Website

Product Sheet

Product Sheet english

Product Sheet english HC

Press release

User Manual english (0.94 MB)

Popular Alternatives

1500 ANSI-Lumen


Model	Z41	Smart 4K Projector	DP06	C12C	Smart Beamer
Ansi-Lumen	1500	1500	1500	1500	1500
Specifications	HDTV LED Android LAN WLAN	HDTV LED LAN WLAN	HDTV LED WLAN MP	HDTV LED Android MP	HDTV LED LAN WLAN
Compare	Compare	Compare	Compare	Compare	Compare

All: 5 from 5 Stars 1 Reviews

Autor: Mackel 07.10.06

5 Stars

Toshiba TLP 680 --- fine piece

The Toshiba TLP 680 delivers a wonderfully bright and sharp picture and is easy to operate.
Unfortunately, you can still hear a quiet fan whirring during standby.
