The equipment of the Sharp XP-A824U- projector includes 7500 ANSI lumens, a contrast of 3000000:1 with a WUXGA 1920 x 1200 display. With its built-in laser light source, the projector achieves a manufacturer-stated lifespan of 20000 hours – calculating to 13.7 years at four hours of use per day. You can choose between black and white for the housing color. Regarding setup flexibility, the model features an optical lens shift function alongside digital keystone correction, allowing for precise alignment without distortion. The optical system is designed for the use of interchangeable lenses, allowing for a tailor-made configuration for almost any throw ratio. The Lens Calculator is available to calculate the exact dimensions. A look at the light output reveals: The 7500 ANSI lumens are sufficient to illuminate an image width of up to 880 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 587 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. Regarding signal processing, the model is compatible with incoming 1080P content and 4K as well as 3D. An additional 360° projection capability allows the device to be oriented at almost any angle. Regarding professional networking, the device offers a classic RJ45 LAN port for control alongside HDBaseT for the lossless transmission of picture and sound over long distances.
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser Phosphor
Light Life
20000 h.
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
3333 Lux
Contrast:
3000000:1
Candela pro m²:
1062 cd/m²
Foot-Lamberts:
310 fL
56 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-

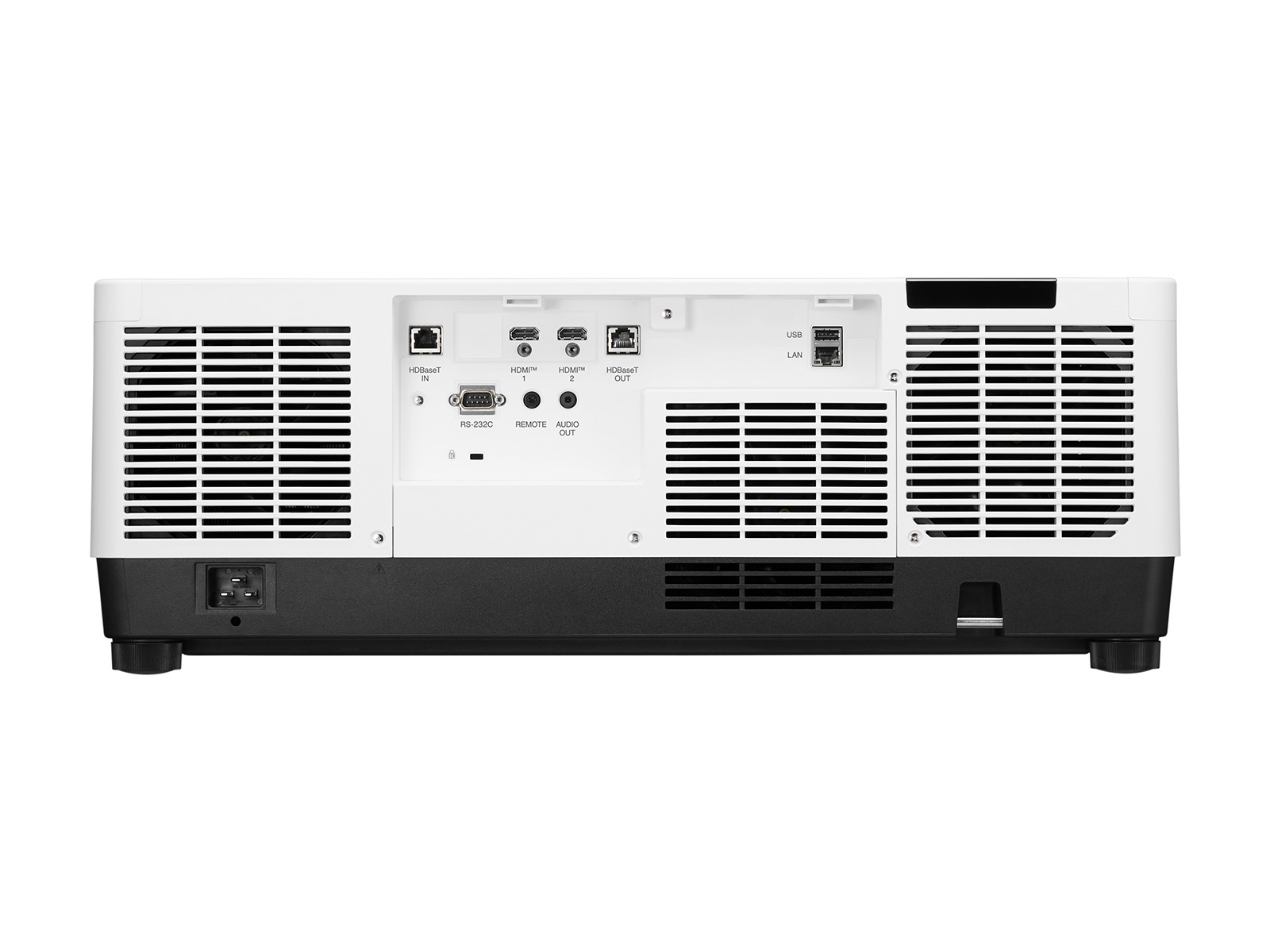

Connections
2 x HDMI™ mit HDCP-Unterstützung 2.2
Mini Jack Audio out
USB-A 2.0 in
3D Sync out Mini-DIN 3-polig
3,5mm in Wired Remote
RS232C Din 9 pin in
RJ45 in
HDBaseT in und out
Real Full HD 3D Full HD 1080P compatible Lens shift Funktion Eco Mode Kensington Slot High Dynamic Range (HDR) Warping 360° installable Edge Blending Password protection PJLink™ Control via web browser Lan network compatible. Crestron®-Software compatible. AMX Beacon Dicom simulation Lens Memory Manual wall color correction NaViSet Administrator 2 Picture in Picture Stacking function Refresh rate: 60Hz @ 4K
Real Full HD 3D
