Canon Rayo R4

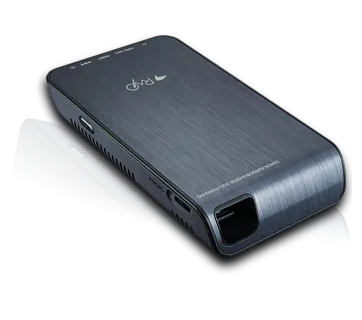

Image Canon Rayo R4
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The basic data of the Canon Rayo R4 includes 50 ANSI lumens, a resolution of VGA 640 x 480 as well as a contrast of 800:1. The LED unit of this model is rated for up to 10000 hours of runtime, covering an estimated 6.8 years based on a 4-hour daily runtime.
To reduce dependence on stationary power sources, the model is equipped with a built-in battery for autonomous operation.
This model dates back to 2017 and is no longer part of Canon's current product range. In our projector directory, the device still generates high interest.
Display Type       1 x 0,24"
      VGA 4/3
Ansi-Lumen
Projector
 50
Screen
 17 Lux (200 cm Screen width)
Contrast 800:1 800:1
Black Level 0,0625 min. Lumen 0,021 min. Lumen
Offset -
Resolution VGA 640 x 480
307.200 Pixel
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Application Game-Portabel | Battery projector | Very portable, small-screen projections.
Very narrow picture width and rooms with very little light.
Light Source LED RGB
Light Life 10000 h.
Operating Costs 0,00 € LED
The projection is too dark.
The screen width should be reduced.
Lux: 17 Lux
Contrast: 800:1
Candela pro m²: 7 cd/m²
Foot-Lamberts: 2 fL

Screen width:cm
          Room:
•
Focus Kein Focus nötig
Zoom No Zoom
Objective -
Throw Ratio -
Audio Mono
Connections Mini HDMI in
Audio out
Ceiling Mounting Yes, is possible.
Power -
Size WxHxD 71 x 20 x 124 mm (2,8"x0,8"x4,9") 0,18 L/dm³
Operating Noise -

Weight 0,169 kg / 0,37 lbs.
Keystone -
Illumination -
Frequenz -
Foot-Lamberts 2 fL / max. 62 cm screen width
Candela m² 7 cd/m²
Features Wi-Fi network compatible.
1,700mAh
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Canon Rayo R4 compared to others not current "Game-Portabel" projectors.
Ansi-Lumen:
1 Weight:
99
Contrast:
1 dB: 0
Black level:
99 Power cons.: 0
Picture Total Points:34 Projector Total Points:0
Popularity Top 100
3 popularity points 15 popularity points 12 popularity points 11 popularity points 10 popularity points 13 popularity points
Points:
13
Ranking: 80 (From: 1100)
Status 2017 Discontinued (EOL) // Last update of the data: 2026-06-09
Created:
Data
Canon Website
Product Sheet english HC
User Manual english (2.38 MB)

Projektor Canon Rayo R4 Projektor Canon Rayo R4 Projektor Canon Rayo R4
