Everest YO502X

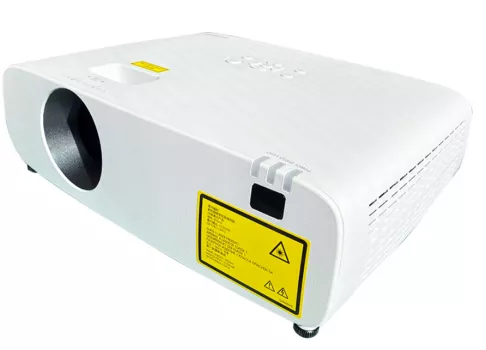

Image Everest YO502X
Customer review
Offer Ads
Discover the projector on Amazon. Now!
Model Overview As a projector, the Everest YO502X combines LCD technology with a resolution of XGA 1024 x 768, and is additionally specified with 5000 ANSI lumens and a contrast of 5000000:1. The laser technology ensures a specified light source lifespan of up to 20000 hours, which translates to 13.7 years with 4 hours of daily use.
Should a perpendicular setup to the screen not be possible, the integrated keystone correction (horizontal and vertical) helps to realign the image into a perfect rectangle.
Regarding projection size, the value of 5000 ANSI lumens allows for an image width of up to 616 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 411 cm.
Regarding signal processing, the model is compatible with incoming 1080P content as well as 3D. Furthermore, the model supports 360° projections for highly flexible deployment scenarios. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket.
Display Type       3 x 0,63" LCD TFT Panel
      XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
5000
Screen
1667 Lux (200 cm Screen width)
Contrast 5000000:1 full on/off 5000000:1 full on/off
Black Level 0,0010 min. Lumen 0 min. Lumen
Offset -
Resolution XGA 1024 x 768
786.432 Pixel
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p
3D Compatibility Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready) |
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source Laser
Light Life 20000 h. / 30000 h. in Eco Mode
Operating Costs 0,00 € Laser
Calculated brightness quality
The screen width may also be larger. Perfect
296 - 356 cm
Lux: 1667 Lux
Contrast: 5000000:1
Candela pro m²: 531 cd/m²
Foot-Lamberts: 155 fL

Screen width:cm
          Room:
Focus Manual
Zoom Manual x1,2
Objective F=1,6-1,76 f=19,158-23,018 mm
Throw Ratio 1,48-1,78:1 show
Audio 1 x 16W
Connections 2x HDMI in
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
USB-B in
USB-A in
RS232C Din 9 pin in
RJ45 in
Ceiling Mounting Yes, is possible.
Power Normal: 350W / ECO1: 270W / ECO2: 230W
Size WxHxD 390 x 128 x 294 mm (15,4"x5"x11,6") 14,68 L/dm³
Operating Noise 37 / 27 dB in Eco Mode
Key: 171 cm
Key: 171 cm

Without offset

Key: 171 cm
Key: 171 cm

Weight 5,00 kg / 11,02 lbs.
Keystone Vert.: +/-30°  automatisch
Hori.: +/-30°
Illumination -
Frequenz H-sync: 15-100 kHz
V-sync: 24-85 Hz
Foot-Lamberts 155 fL / max. 616 cm screen width
Candela m² 531 cd/m²
Features Real Full HD 3D
Full HD 1080P compatible
Blackboard Modus
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
360° installable
Password protection
PJLink™
Lan network compatible.
Crestron®-Software compatible.
AMX
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Everest YO502X compared to others current "Standard-Portabel" projectors.
Ansi-Lumen:
71 Weight:
45
Contrast:
100 dB:
58
Black level:
100 Power cons.:
100
Picture Total Points:90 Projector Total Points:68
Popularity Top 100
0 popularity points 4 popularity points 2 popularity points 1 popularity points 1 popularity points 2 popularity points
Points:
2
Ranking: 717 (From: 953)
Optional accessories
ceiling bracket length: 100-120mmHalterung10047,86 €
Status 2022 Current model // Last update of the data: 2026-06-09
