Boxlight SP 45m

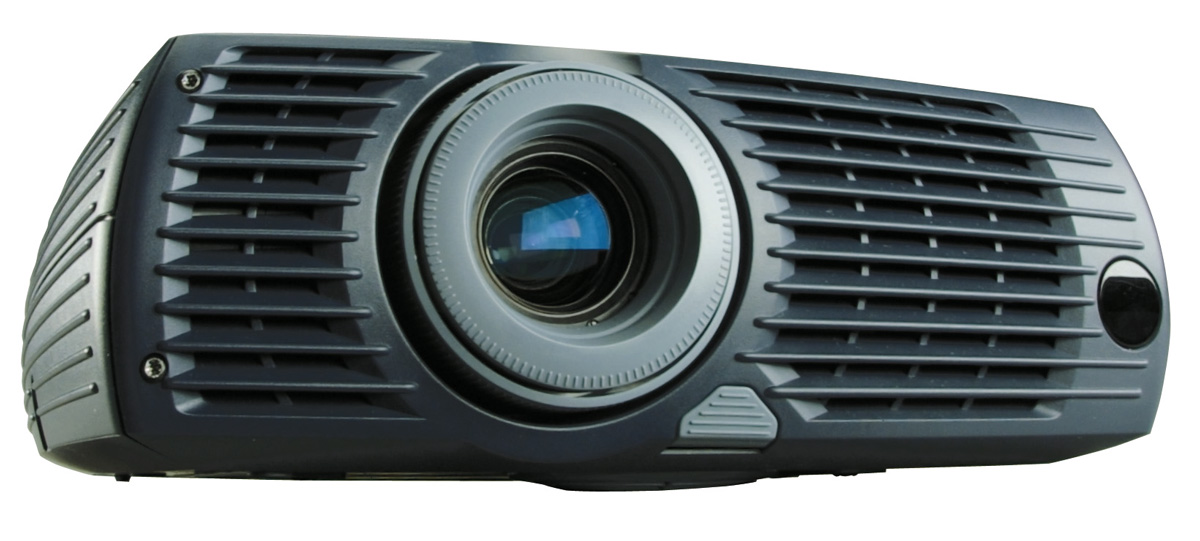

Image Boxlight SP 45m
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The Boxlight SP 45m is a LCD projector that brings 1000 ANSI lumens, a SVGA 800 x 600 resolution alongside a contrast of 400:1. According to Boxlight, the lamp has a durability of 2000 hours.
A look at the light output reveals: The 1000 ANSI lumens are sufficient to illuminate an image width of up to 275 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 183 cm.
This device is no longer manufactured and has been removed from Boxlight's current lineup.
Display Type       3 x 0,55" LCD TFT Panel
      SVGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
 1000
Screen
 333 Lux (200 cm Screen width)
Contrast 400:1 full on/off 400:1 full on/off
Black Level 2,5000 min. Lumen 0,839 min. Lumen
Offset 40% 15 cm under screen top edge →
SCREEN
+ Projector
Resolution SVGA 800 x 600
480.000 Pixel
Video Modes NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM 480p
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 50 lumens.
Light Source 132W UHP Lamp
Article Nr.: SP-45m
Order Lamp
66,94 66,94 €
Light Life 2000 h.
Operating Costs -
Calculated brightness quality Good (1.8)
360 - 430 cm
Lux: 333 Lux
Contrast: 400:1
Candela pro m²: 106 cd/m²
Foot-Lamberts: 31 fL
60 cm

Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,19
Objective -
Throw Ratio 1,8-2,15:1 show
Audio 1 x 1W Mono
Connections Inputs: 1- 15-pin computer, 1- composite video, 1- S-video, 1 - mini-jack audio Video
Outputs: 1- 15-pin computer, 1-control port for Maus operation, 1-USB port for Maus operation
Ceiling Mounting Yes, is possible.
Power 210W
Size WxHxD 255 x 95 x 305 mm (10"x3,7"x12") 7,39 L/dm³
Operating Noise 35dB
Key: 156 cm
Key: 36 cm
Weight 2,63 kg / 5,8 lbs.
Keystone Vert.: +/-15°
Illumination -
Frequenz H-sync: 15-100 kHz
V-sync: 43,5-130 Hz
Foot-Lamberts 31 fL / max. 275 cm screen width
Candela m² 106 cd/m²
Features Picture-in-Picture
Remote control with mouse control
Screen Mirroring -
In Comparison
The Boxlight SP 45m compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
10 Weight:
88
Contrast:
1 dB:
36
Black level:
91 Power cons.:
98
Picture Total Points:34 Projector Total Points:74
Popularity Top 100
2 popularity points 4 popularity points 5 popularity points 1 popularity points 1 popularity points 4 popularity points
Points:
4
Ranking: 3167 (From: 7737)
In Test -
Optional accessories
bulb only Philips NLMP73166,94 €
lamp OriginalLMP731EOL €
ceiling bracket length: 100-120mmHalterung10047,86 €
Airfilter universaluni3mm18,15 €
Status - Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Boxlight Website
distanckalkulator
Product Sheet
Product Sheet english HC
User Manual english (2.18 MB)
