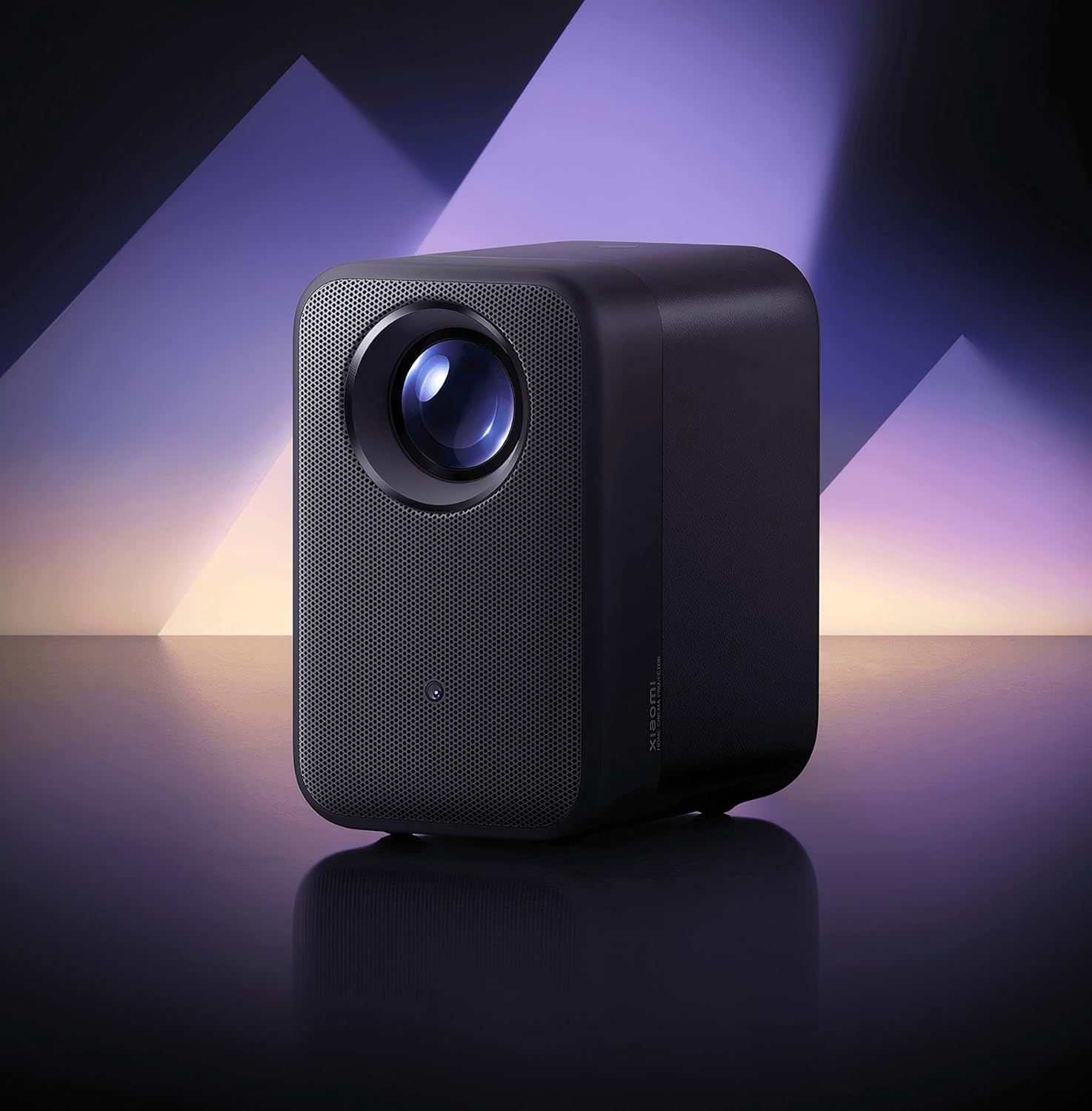

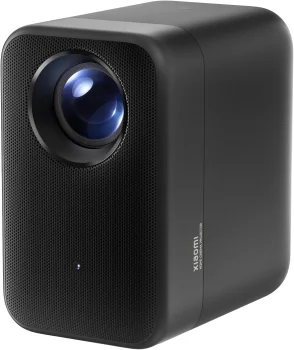

The L1 Pro model is a LED-LCD projector from Xiaomi, intended for Micro-Portabel applications, offering 500 ANSI lumens, a contrast of 2000:1 at HDTV 1920 x 1080. An LED lifespan of 30000 hours is noted in the data sheet for this model – calculating to 20.5 years at four hours of use per day. The image geometry can be adjusted via the built-in keystone correction so that a clean, rectangular display is achieved even with non-ideal placement. Because the manufacturer specifies brightness in ISO lumen values, we have determined an ANSI lumen value for better comparability. Looking at practical performance, up to 227 cm can be illuminated with 500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 151 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K. Android TV is integrated as a smart platform, enabling direct access to streaming services like Netflix or YouTube. As an additional feature, an integrated media player enables the direct playback of files without an external source device. For wireless audio output, the projector also supports Bluetooth, making it easy to quickly connect external soundbars. In the specifications, the operating noise is listed at a mere 30 decibels, indicating very quiet cooling.
Display Type
1 x LCD Panel HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
500 / 400 ISO Lumen
Screen
222 Lux (200 cm Screen width)
Contrast
2000:1 full on/off
2000:1 full on/off
Black Level
0,2500 min. Lumen
0,111 min. Lumen
Offset
-
Resolution
HDTV 1920 x 1080
2.073.600 Pixel UHD (4K2K) 3840 x 2160 compressed
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p Media player formats: Mediaplayer
Application
Micro-Portabel | Small mobile presentations. Very narrow picture width and rooms with very little light.
Light Source
LED
Light Life
30000 h.
Operating Costs
0,00 € LED
Calculated brightness qualityGood (2.5)
240 cm (no Zoom)
Lux:
222 Lux
Contrast:
2000:1
Candela pro m²:
72 cd/m²
Foot-Lamberts:
21 fL
•
Focus
Automatic
Zoom
No Zoom
Objective
-
Throw Ratio
1,2:1
Audio
2 x 5W + Dolby Audio
Connections
HDMI 2.1 in
USB 3.0 in
Mini Jack Audio out
Bluetooth 5.0
Full HD 1080P compatible Integrated Mediaplayer Eco Mode Wi-Fi network compatible. Android TV OS (Google Voice Assistant) Auto Keystone Auto Obstacle Avoidance Auto Image Adjustment
Full HD 1080P compatible
Xiaomi Website
Product Sheet english HC
