Eiki LC XIP2000

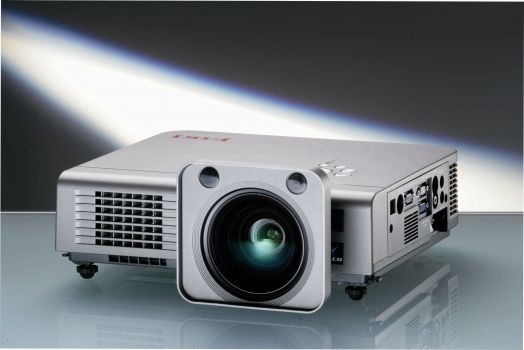

Image Eiki LC XIP2000
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The projector LC XIP2000 by Eiki operates as a LCD device with 2400 ANSI lumens, a XGA 1024 x 768 resolution and a contrast of 500:1. The manufacturer lists the lamp life at 2000 hours.
A major advantage for professional installations is the ability to use interchangeable lenses, allowing the projector to adapt to highly varied projection distances. Which optic is required for a specific case can easily be calculated via the Projector Calculator.
A look at the light output reveals: The 2400 ANSI lumens are sufficient to illuminate an image width of up to 427 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 285 cm.
Specifically for the educational or business sector, an interactive whiteboard function is also integrated.
The projector was released in 2007 and is officially no longer distributed by Eiki. This model continues to hold a solid place in our database search queries. For your information: Compatible lamps for this device are no longer available in stores.
Display Type       3 x 0,63" LCD TFT Panel mit MLA
      XGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
2400 / 2000 in USA
Screen
800 Lux (200 cm Screen width)
Contrast 500:1 full on/off 500:1 full on/off
Black Level 4,8000 min. Lumen 1,61 min. Lumen
Offset 36,7% 20 cm under screen top edge →
SCREEN
+ Projector
Resolution XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Application Whiteboard | Training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens.
Light Source 200W NSH Lamp
Article Nr.: 23040007
Order Lamp
Light Life 2000 h.
Operating Costs -
Calculated brightness quality Perfect
204 - 244 cm
Lux: 800 Lux
Contrast: 500:1
Candela pro m²: 254 cd/m²
Foot-Lamberts: 74 fL
55 cm

Screen width:cm
          Room:
Focus Manual
Zoom Manual 1,20
Objective F=1,6-1,88 f=13,0-15,62 mm / 18,6- 22,31
Throw Ratio 1,02-1,22:1 show
Audio 2W Mono
Connections 2 x Dsub 15 pin in 1 x out
S-Video in
Cinch Video in
USB typ B in
Mini Jack Audio in und out
RS232C
Ceiling Mounting Yes, is possible.
Power 250 / 210W in Eco Mode
Size WxHxD 310 x 135 x 333 mm (12,2"x5,3"x13,1") 13,94 L/dm³
Operating Noise 41dB
Key: 173 cm
Key: 63 cm

Weight 3,50 kg / 6,61 lbs.
Keystone Vert.: +/-30°
Illumination 85%
Frequenz H-sync: 15-69 kHz
V-sync: 43-85 Hz
Range max.: 110 MHz
Foot-Lamberts 74 fL / max. 427 cm screen width
Candela m² 254 cd/m²
Features Freeze
Eco Mode
Kensington Slot
Remote control with laser pointer und mouse control
Digital zoom
Integrated whiteboard function.
Dynamic contrast control and 3D comb filter.
Automatic fan control.
Screen Mirroring -
In Comparison
The Eiki LC XIP2000 compared to others not current "Whiteboard" projectors.
Ansi-Lumen:
32 Weight:
83
Contrast:
1 dB:
30
Black level:
82 Power cons.:
98
Picture Total Points:38 Projector Total Points:70
Popularity Top 100
6 popularity points 30 popularity points 26 popularity points 29 popularity points 16 popularity points 27 popularity points
Points:
27
Ranking: 65 (From: 297)
Optional accessories
Ruby-LMP18863247,06 €
lamp (3 pin connector) Original23040011EOL €
lamp (2 pin connector) Original23040007EOL €
Universal Remote Fernb-uni-V322,31 €
Ceiling Mount 100-120 Halterung10047,86 €
Airfilter universaluni3mm18,15 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
ohne Conversion-Lens 1.45-1.74:1 290-348 m 36.7% Fix Manual
Status 2007 Discontinued (EOL) // Last update of the data: 2026-06-09
