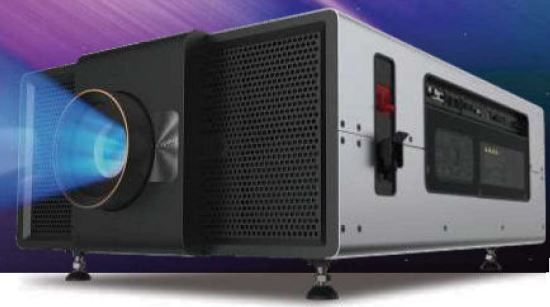

The technical data of the Appotronics AL-TU26KA includes 26000 ANSI lumens, a contrast of 100000:1 as well as a WUXGA 1920 x 1200 display. The laser technology ensures a specified light source lifespan of up to 20000 hours – equivalent to a usable life of 13.7 years at 4 hours a day. For distortion-free image alignment, the projector offers both a lens shift function and keystone correction, granting significant leeway during mounting. For maximum setup flexibility, the model supports optional interchangeable lenses, meaning the optics can be precisely matched to individual on-site requirements. Suitable distances can be determined using the Lens Calculator. Looking at practical performance, up to 1638 cm can be illuminated with 26000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 1092 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. In terms of video signals, the device processes resolutions up to Full HD 1080P as well as 3D. Also on board is a local media player that allows reading and playing content directly from storage media. Regarding professional networking, the device offers a classic RJ45 LAN port for control alongside HDBaseT for the lossless transmission of picture and sound over long distances. This model dates back to 2022 and is no longer part of Appotronics's current product range.
Display Type
3 x DLP Chip WUXGA 16/9 Ti Digital Light Processing Chip
Event | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
ALPD Laser Class 1
Light Life
20000 h.
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
11556 Lux
Contrast:
100000:1
Candela pro m²:
3680 cd/m²
Foot-Lamberts:
1074 fL
101 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
Nein
Connections
HDMI in
DVI-D in
HDBaseT
DisplayPort
D-sub 15pin in und out
2x SDI
Remote in & out
3D SYNC in & out
IR 3D out
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
RJ45 in
Real Full HD 3D
